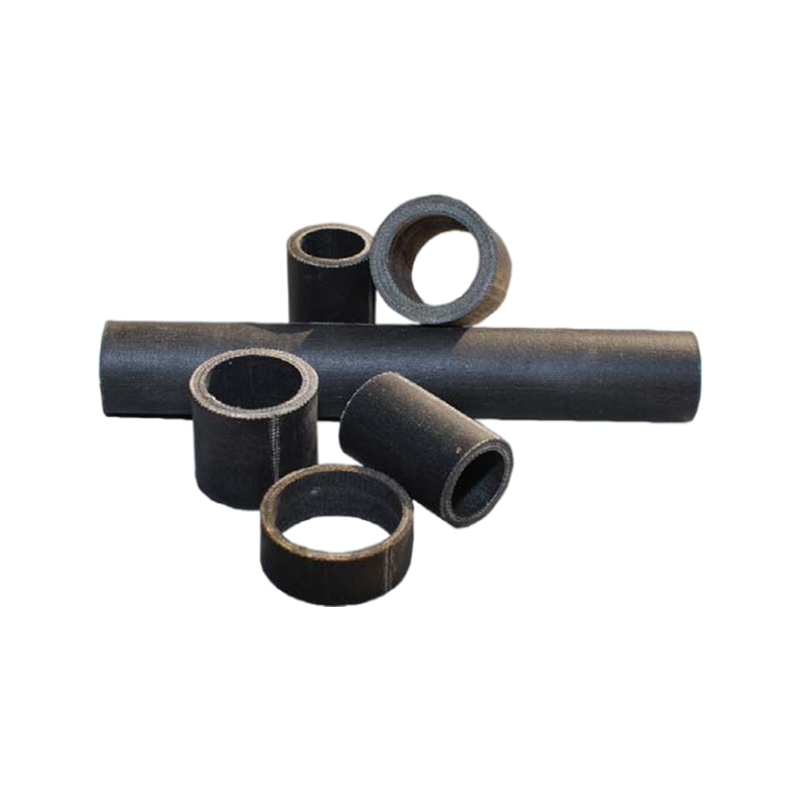

Fabreeka 减振垫圈衬套
由 Fabreeka，Fabcel 或 DIMFAB 材料制成的隔离垫圈以及 Fabreeka 衬套可用于消除金属与金属之间的接触，并打破振动或震动的传递路径。例如，工程师指望放置在机器基座和地脚螺栓之间的 Fabreeka 垫圈和 Fabcel 垫圈。这些有效的 Fabreeka 隔离产品可以按照您的内，外直径和厚度要求进行制造。
Fabreeka® 垫圈尺寸和螺栓扭矩推荐:
Fabreeka 垫圈尺寸 正确扭矩指南
螺栓直径 | 垫圈外径 | 垫圈内径 | 垫圈厚度 | 净面积 | 推荐单位 | 扭矩 | 螺栓力 |
3/16 | 9/16 | 3/16 | 1/8 | 0.212 | 5 | 0.50 | 106 |
1/4 | 3/4 | 1/4 | 5/32 | 0.393 | 9 | 0.75 | 197 |
5/16 | 7/8 | 5/16 | 5/32 | 0.574 | 18 | 1.50 | 287 |
3/8 | 1 | 3/8 | 3/16 | 0.675 | 30 | 2.50 | 338 |
7/16 | 1-1/4 | 7/16 | 15/64 | 1.076 | 47 | 4.00 | 540 |
1/2 | 1-3/8 | 1/2 | 9/32 | 1.288 | 130 | 11.00 | 1,288 |
9/16 | 1-1/2 | 9/16 | 9/32 | 1.517 | 170 | 14.50 | 1,517 |
5/8 | 1-3/4 | 5/8 | 11/32 | 2.10 | 264 | 22.00 | 2,100 |
3/4 | 2 | 3/4 | 11/32 | 2.70 | 406 | 34.00 | 2,700 |
7/8 | 2-1/4 | 7/8 | 11/32 | 3.37 | 600 | 50.00 | 3,370 |
1 | 2-1/2 | 1 | 1/2 | 4.12 | 840 | 70.00 | 4,120 |
1-1/8 | 2-3/4 | 1-1/8 | 1/2 | 4.94 | 1,100 | 92.00 | 4,940 |
1-1/4 | 3 | 1-1/4 | 1/2 | 5.84 | 1,500 | 125.00 | 5,840 |
1-3/8 | 3-1/4 | 1-3/8 | 1/2 | 6.81 | 1,980 | 165.00 | 6,810 |
1-1/2 | 3-1/2 | 1-1/2 | 5/8 | 7.85 | 2,370 | 200.00 | 7,850 |
1-5/8 | 3-3/4 | 1-5/8 | 5/8 | 8.97 | 2,930 | 244.00 | 8,970 |
1-3/4 | 4 | 1-3/4 | 5/8 | 10.16 | 3,560 | 297.00 | 10,160 |
1-7/8 | 4-1/4 | 1-7/8 | 3/4 | 11.42 | 4,320 | 360.00 | 11,420 |
2 | 4-1/2 | 2 | 3/4 | 12.76 | 5,080 | 425.00 | 12,760 |
2-1/4 | 4-3/4 | 2-1/4 | 3/4 | 13.74 | 6,200 | 517.00 | 13,740 |
2-1/2 | 5 | 2-1/2 | 3/4 | 14.72 | 7,400 | 615.00 | 14,720 |
2-3/4 | 5-1/4 | 2-3/4 | 3/4 | 15.71 | 8,680 | 725.00 | 15,710 |
3 | 5-1/2 | 3 | 3/4 | 16.69 | 10,080 | 900.00 | 16,690 |
